SOMPOM 85% efficiency 12V 5A 4CH cctv camera power supply cctv accessoires

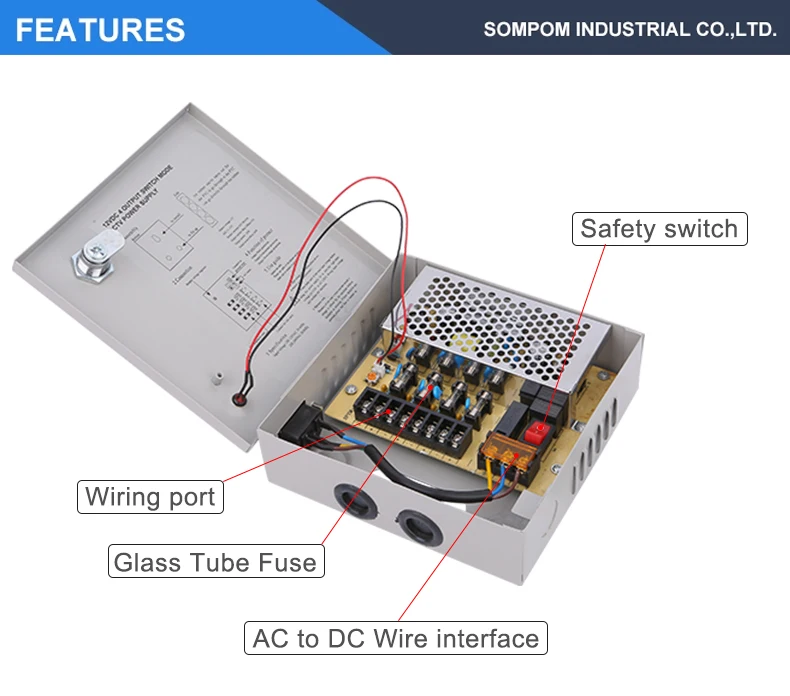

Product Detail Product Description SOMPOM 12V 5A 60W 4CH CCTV Power Supply

DC Output	DC Voltage: 12V
		DC Current :5A
		Ripple & Noise: 80MV
		DC Adjustable Range: ±10% Rated Voltage
		Voltage Tolerance: ±2.0%
		Line Regulation: ±0.5%
		Load Regulation: ±1%
		Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
		Frequency Range: 47-63Hz
		Efficiency:90%
		AC Current: 0.86/115V 0.4A/230V
		AC Inrush Current: 20A/115V 40A/230V
		Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode,Auto-recovery
		Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
		Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60C° (Refer to output load derating curve)
		Working Humidity:20 ~ 90% RH, non-condensing
		Storage Temp.: -10~ +60C°
		Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
		Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
		Safety standards: CE,RoHS,FCC,ISO9001

Related products

Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
Model Series Link (View more)
3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A
5V Series:  5V2A,  5V3.8A,  5V5.5A,   5V10A,   5V20A, 5V30A,  5V40A, 5V60A
6V Series:  6V10A,  6V20A,  6V30A,  6V40A,   6V50A
9V Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A
12V Series: 12V1A,  12V2A,  12V3.2A,  12V5A,  12V8.5A, 12V10A,  12V12.5A,  12V15A,  12V16.5A,  12V20A,  12V30A,  12V40A,  12V50A.
13.8V Series: 13.8V30A
15V Series: 15V2A,15V5A, 15V10A,15V20A
18V Series: 18V2A,  18V3A,   18V5A  ,  18V7.5A,   18V10A,   18V20A
24V Series: 24V1A,  24V2A,  24V3A,  24V5A,  24V7.5A,  24V10A,  24V15A,   24V20A,   24V25A
28V Series:28V1A
36V Series: 36V2A,   36V5A,   36V10A
48V Series: 48V2A ,  48V3A , 48V5A , 48V7.5A , 48V10A , 48V15A

Accessories SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV Camera Power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering. Our certificate FAQ Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your LED Driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Donguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it. Our Factory Contact us
