SOMPOM 12V 20A 18CH 240W 85% efficiency CCTV Camera Power Supply

Product Description

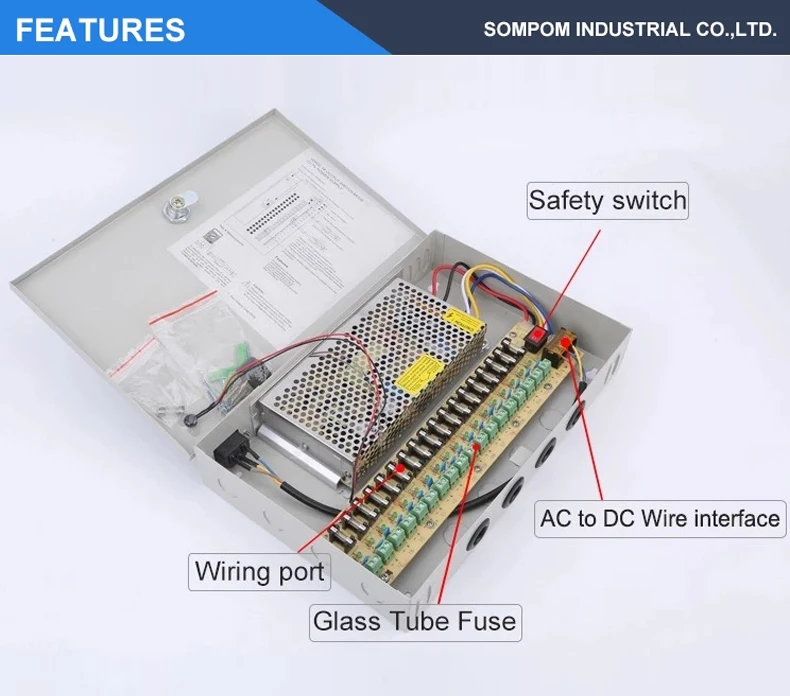

Product Detail Product Description SOMPOM 12V 20A 240W CCTV Power Supply





DC Output
DC Voltage: 12V
DC Current :20A
Ripple & Noise: 80MV
DC Adjustable Range: ±10% Rated Voltage
Voltage Tolerance: ±2.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC



AC Input
AC Voltage Range: 85-264VAC
Frequency Range: 47-63Hz
Efficiency:90%
AC Current: 0.86/115V 0.4A/230V
AC Inrush Current: 20A/115V 40A/230V
Leakage Current< 0.5mA /240VAC

Protection
Over-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery


Environment
Working temp.: -10~ +60C° (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60C°
Storage Humidity: 10 ~ 95% RH


Safety
Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC,ISO9001
Related products
Features: 110V/220V AC to DC Power Series
3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
Model Series Link (View more)
5V Series:  5V2A,  5V3.8A,  5V5.5A,   5V10A,   5V20A, 5V30A,  5V40A, 5V60A
18V Series: 18V2A18V3A,   18V5A  ,  18V7.5A,   18V10A,   18V20A
Accessories SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV Camera Power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering. Our certificate FAQ Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your LED Driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Donguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it. Our Factory Contact us

Contact us if you need more details on Cctv Camera. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cctv Power Supply、Switch Power. If these products fail to match your need, please contact us and we would like to provide relevant information.
